CAD Gallery – SolidWorks & nTop

Most of these 3D designs were modeled in SolidWorks, following tutorials for practice and skill-building. They may not be complex, but they helped reinforce core modeling concepts like extrusions, fillets, patterns, and assemblies. The lattice structures shown below are based on real-world applications using advanced design tools like nTop and simulation environments.

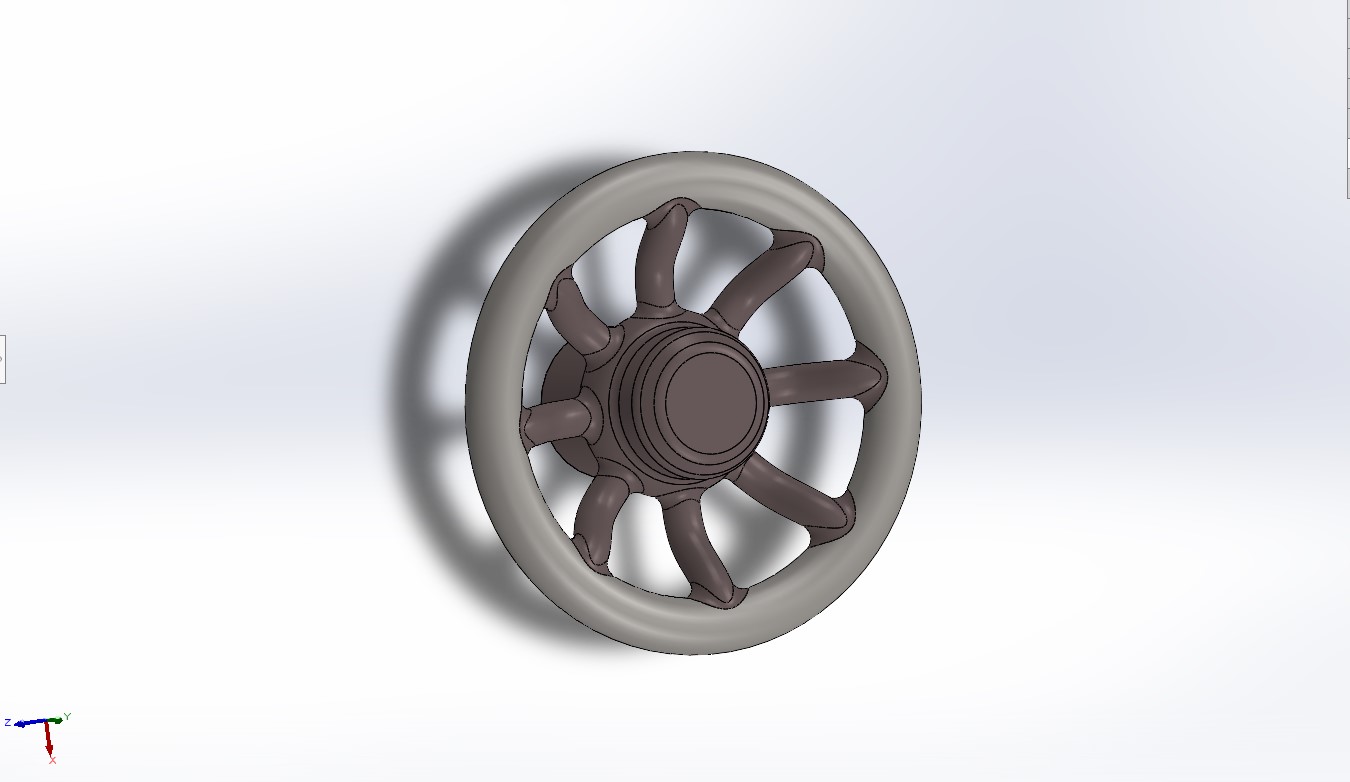

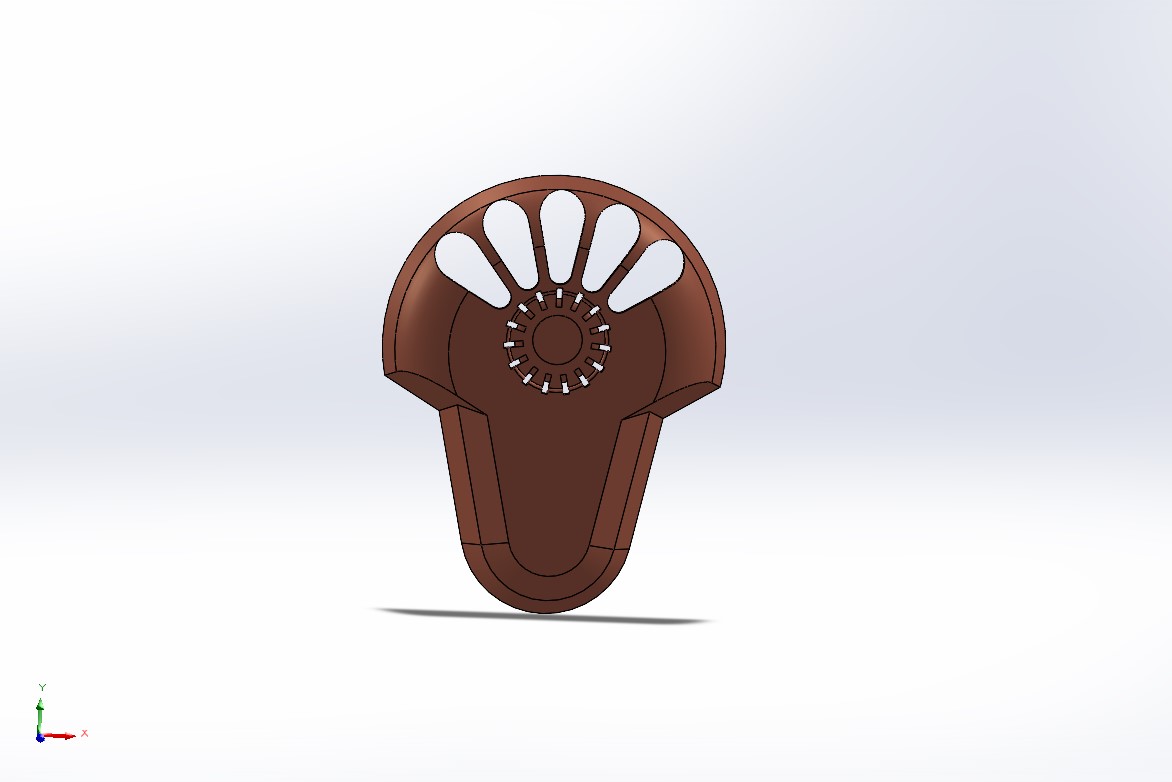

Design 1 Design 2 Design 3

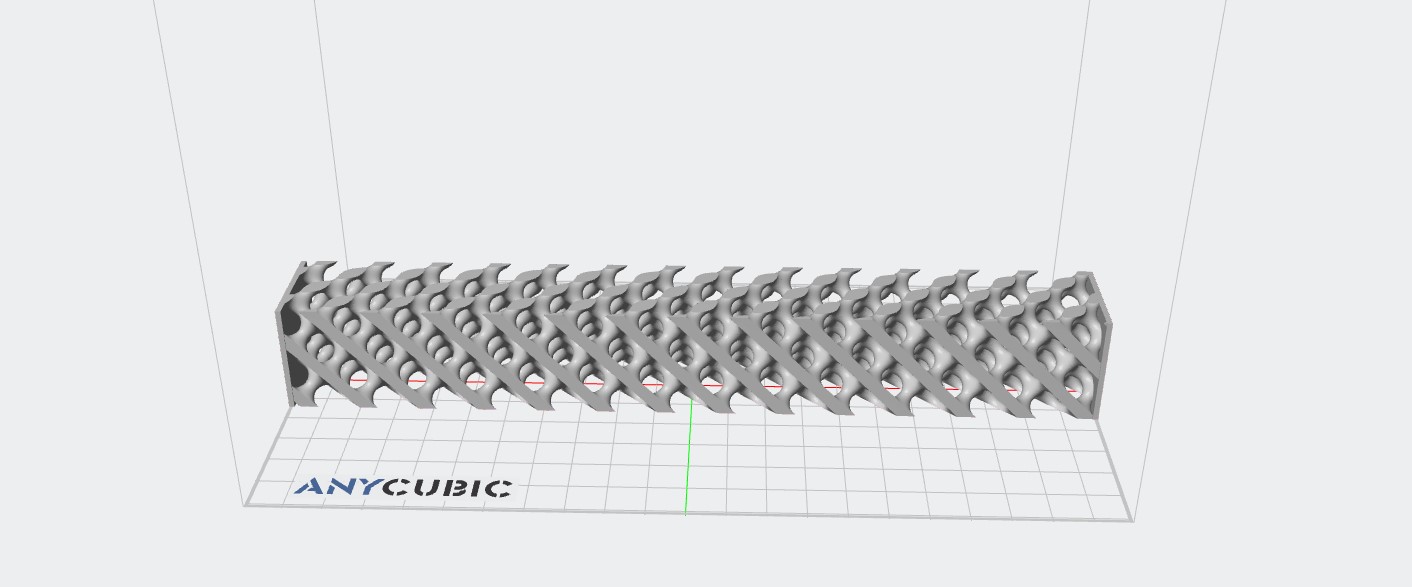

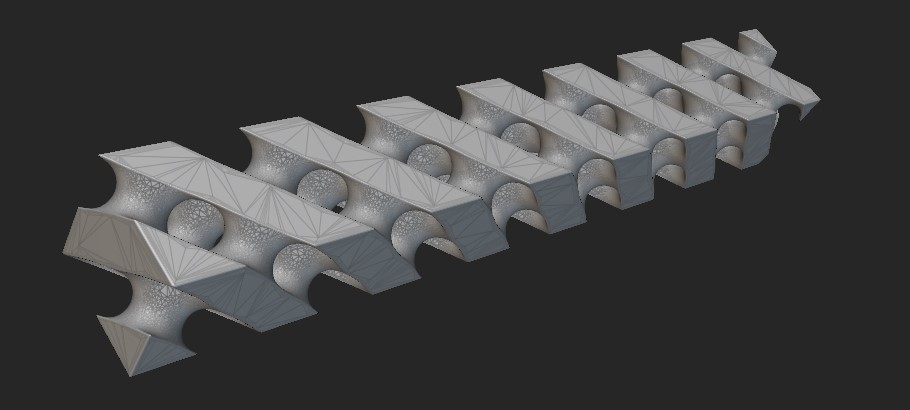

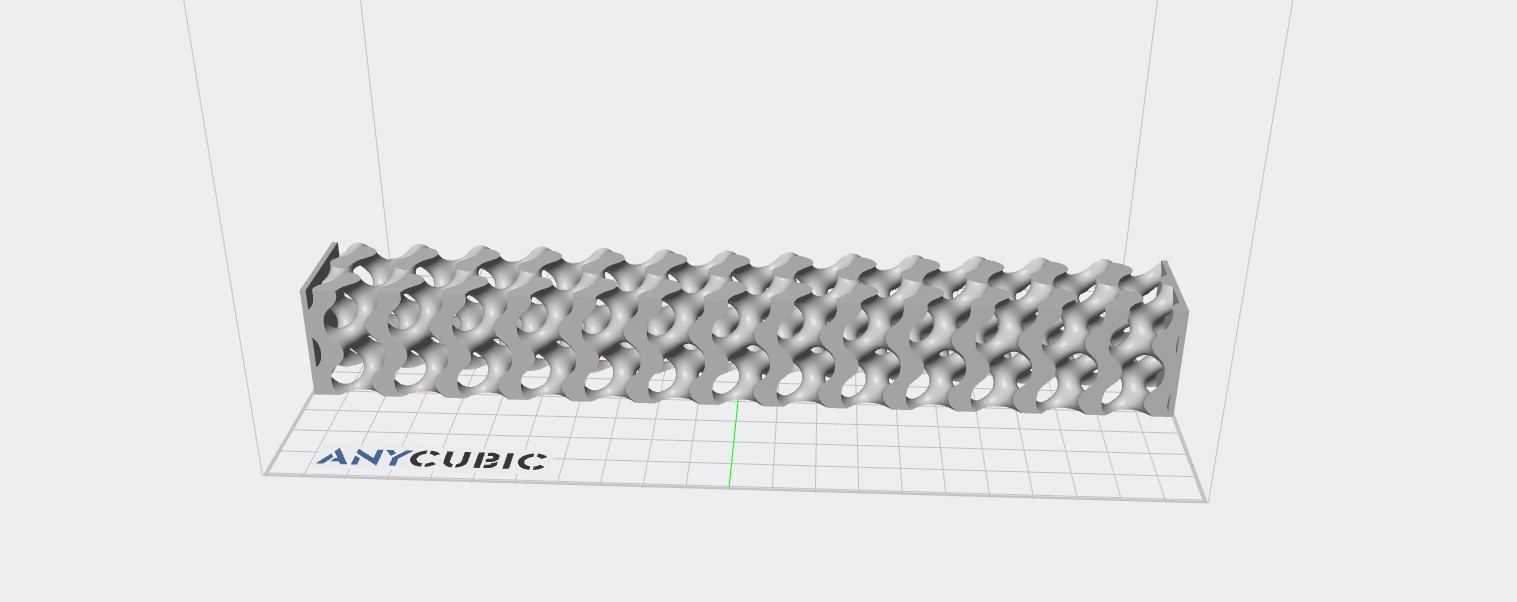

Diamond Lattice Schwarz D Lattice from nTop Gyroid Lattice

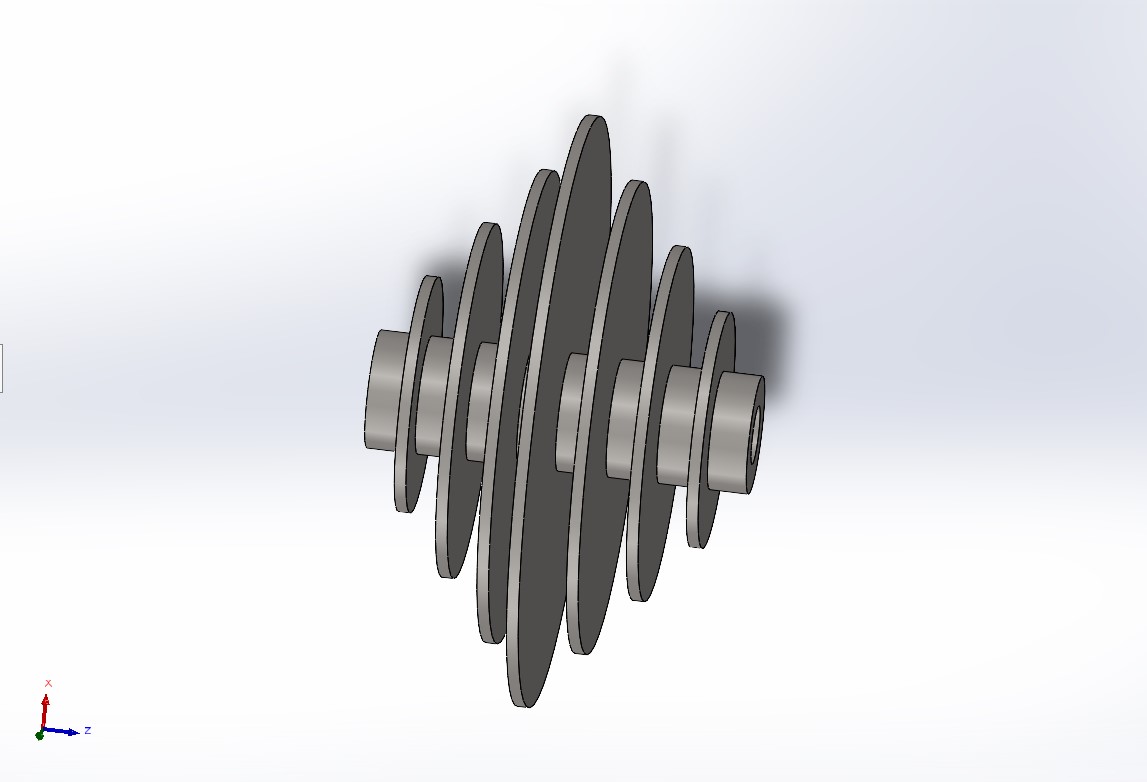

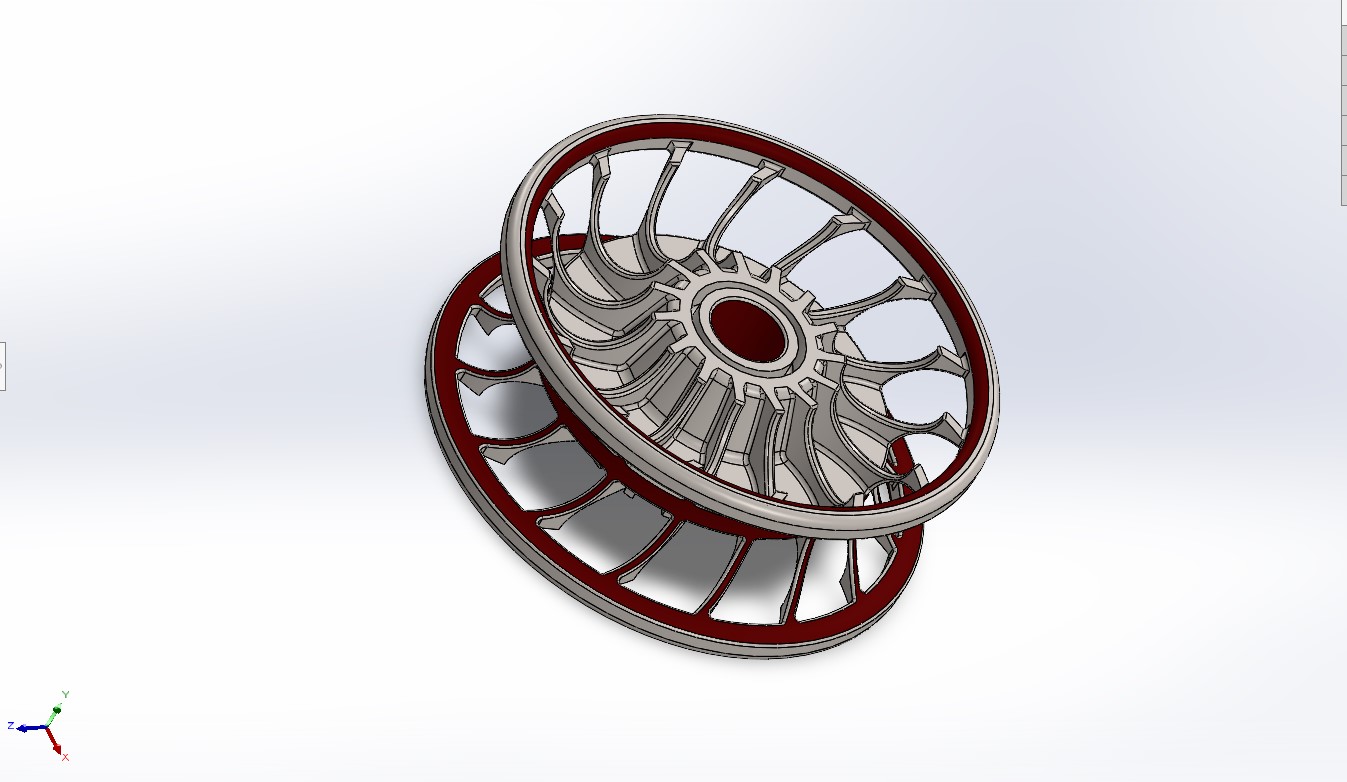

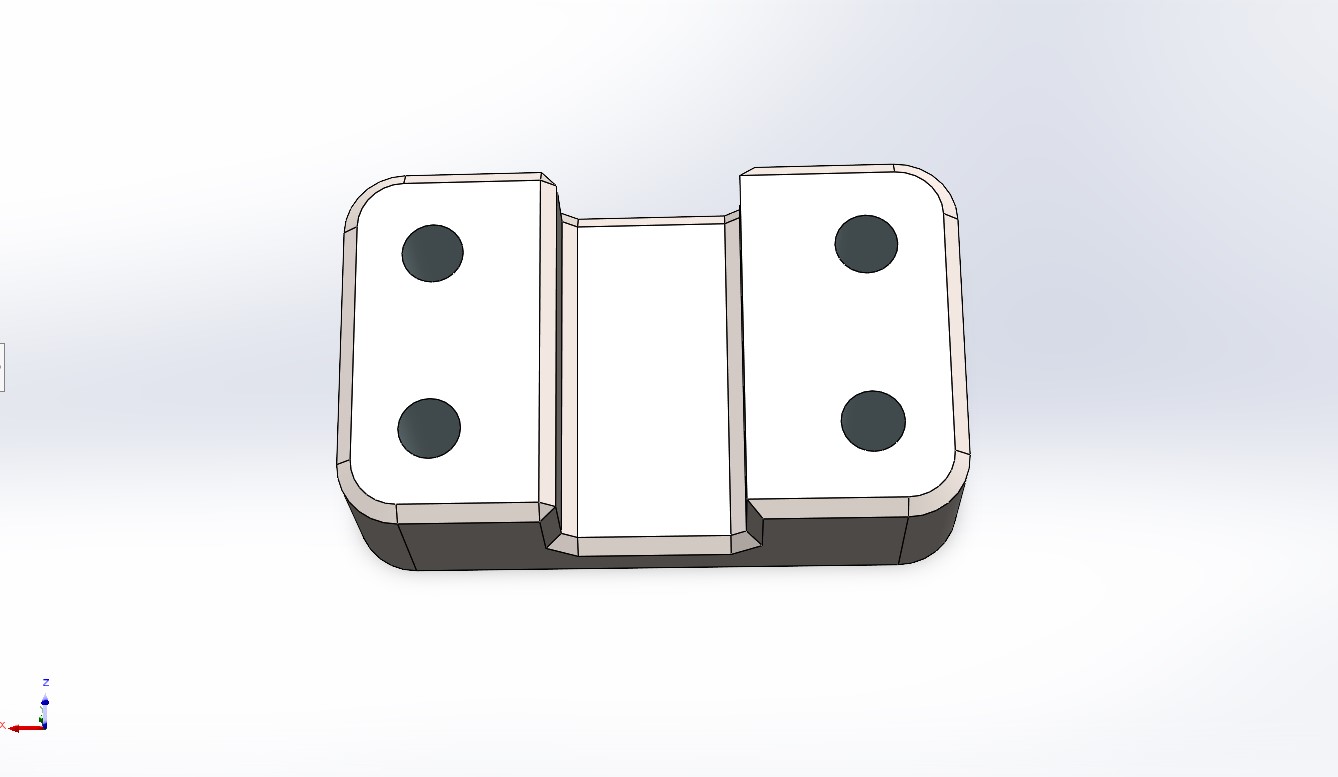

Design 4 Design 5 Design 6

If you’re interested in using or printing one of these designs, feel free to reach out via email for the STL or SolidWorks file. I’m always happy to share and collaborate.
